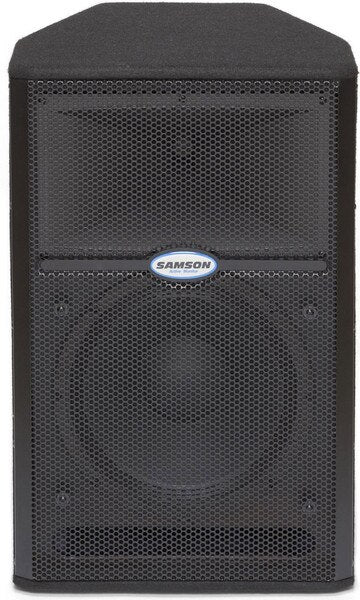

The L612M from Samson is a high-quality active two-way stage monitor speaker. Great for a wide variety of music, the monitor has a custom 12" woofer and a 1.75" tweeter to provide a full frequency response. Internal amplifiers offer a total combined power of 300W for a strong performance. The ported cabinet has an all-plywood construction for the best output and long-lasting durability. A large aluminum heatsink prevents the speaker from overheating, for years of reliable performance.

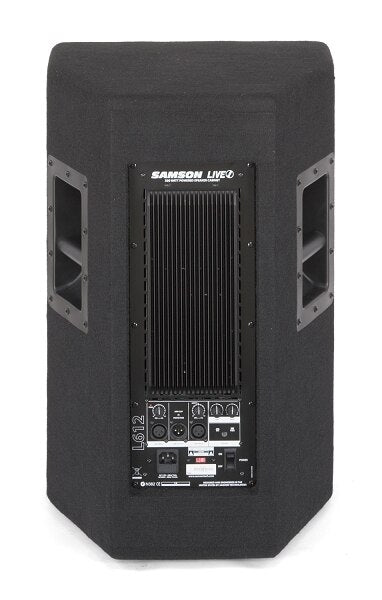

The rear of the unit features balanced, line-level XLR input and output connectors, allowing you to connect to virtually any professional sound system. A level adjustment knob is provided, along with low and high EQ knobs to match the monitor to your performance space. A large carrying handle makes transportation a snap and a voltage selector switch allows you to use the monitor internationally.
Features
- Two-way active stage monitor
- Heavy-duty custom 12" woofer and 1.75" tweeter for a full frequency response
- Bi-amplified system provides 300W of total power
- Ported, all-plywood cabinet for high output and lasting durability
- Balanced, line-level XLR I/O connectors
- Level control knob
- High and low EQ control knobs
- Voltage selector switch
- LED indicators for power, active, and clip
- Large carrying handle
- Strong steel grille protects drivers
- Large aluminum heatsink prevents overheating
Specifications
- Active or Passive: Active
- Frequency Response: 60Hz - 20kHz
- Amplifier
- LF: 250W
- HF: 50W
- Maximum Sound Pressure Level (SPL): Not Specified by Manufacturer
- Crossover: 2.3kHz, 3-Pole, 24dB/Octave
- Low Frequency Driver: 12" (305mm) Heavy-Duty Transducer with 3" Voice Coil
- High Frequency Driver: 1.75" (44mm) Titanium Compression Driver with Edge-Wound Copper Voice Coil
- Enclosure Material: Plywood
- Connectors
- 1 x AC Power Input
- 1 x Balanced XLR Line-Level Input
- 1 x Balanced XLR Line-Level Output
- Controls and Indicators
- 1 x Blue Power LED
- 1 x Green/Red Amp/Clip LED
- 1 x Power Switch
- 1 x Voltage Selector Switch
- 1 x Level Control Knob
- 1 x Low EQ Control Knob
- 1 x High EQ Control Knob
- Mounting: Floor
- Dimensions (HxWxD): 25.2 x 16.1 x 16.8" (640 x 410 x 426mm)
- Weight: 57.5 lbs (26.1kg)
